1. STRONG MAGNET: Bottom magnet design, can be directly connected to the machine, firmly attached to the body.
2. CARBIDE PROBE: The tool probe is made of cemented carbide, with fine processing, hard and wear resistant.
3. GOOD SEALING: With and structure, has strong durability in the existence of coolant and iron filings.
4. HIGH EFFICIENCY: Repeated positioning accuracy of 0.001mm, with high accuracy and sensitivity, efficient and .

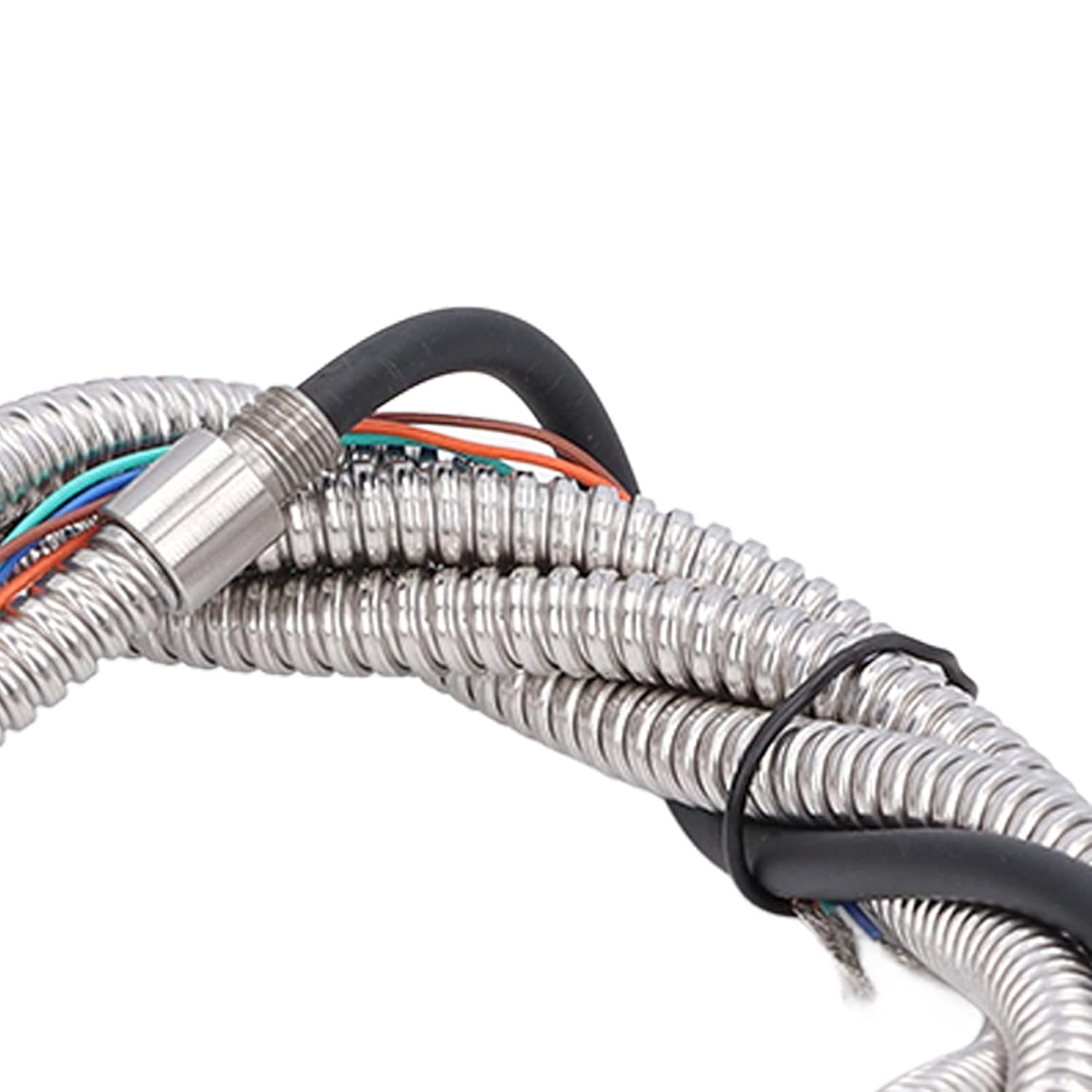

5. FOR CNC DEVICES: The tool setter is normally closed design, with cable, and can be used with most CNC equipments.
Specification:

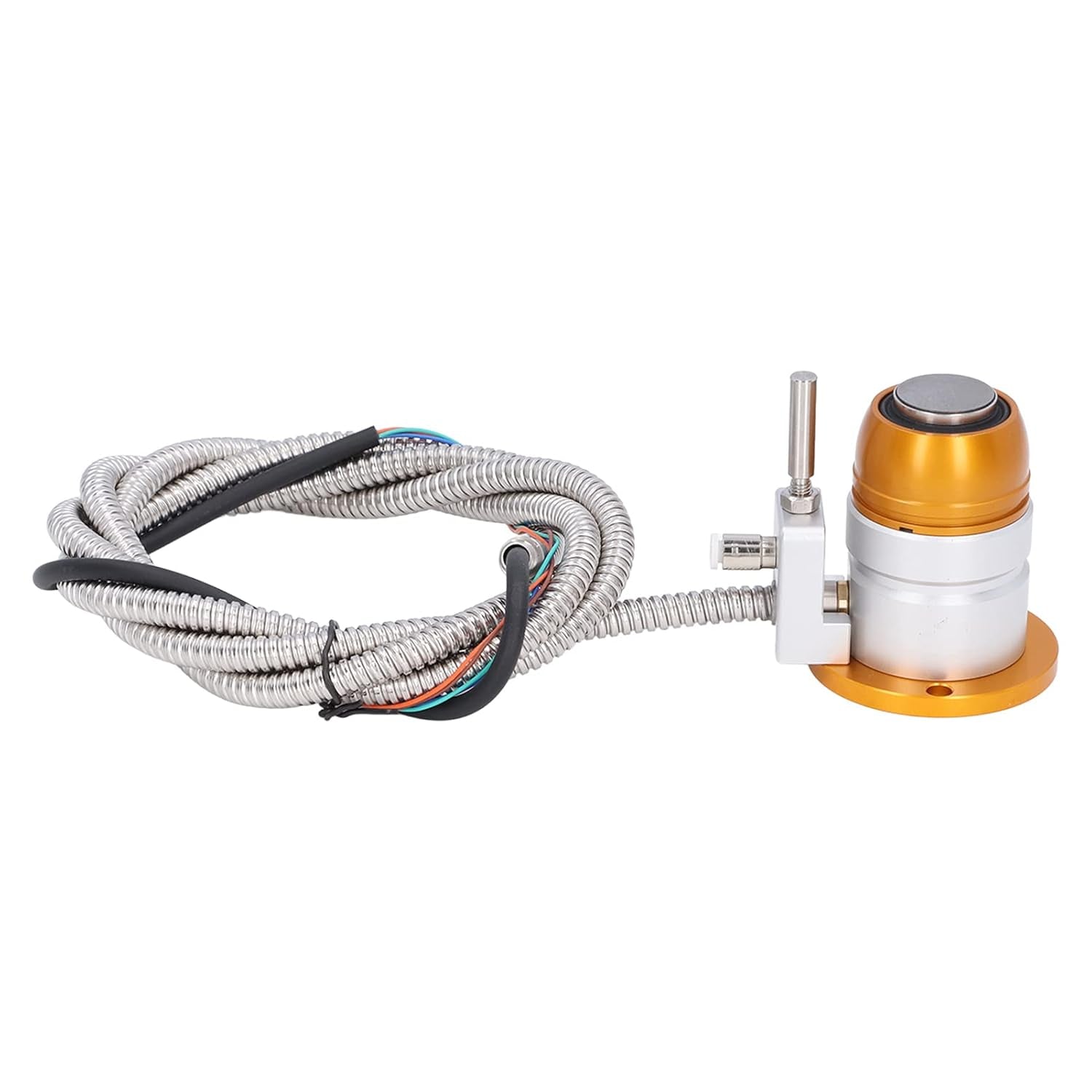

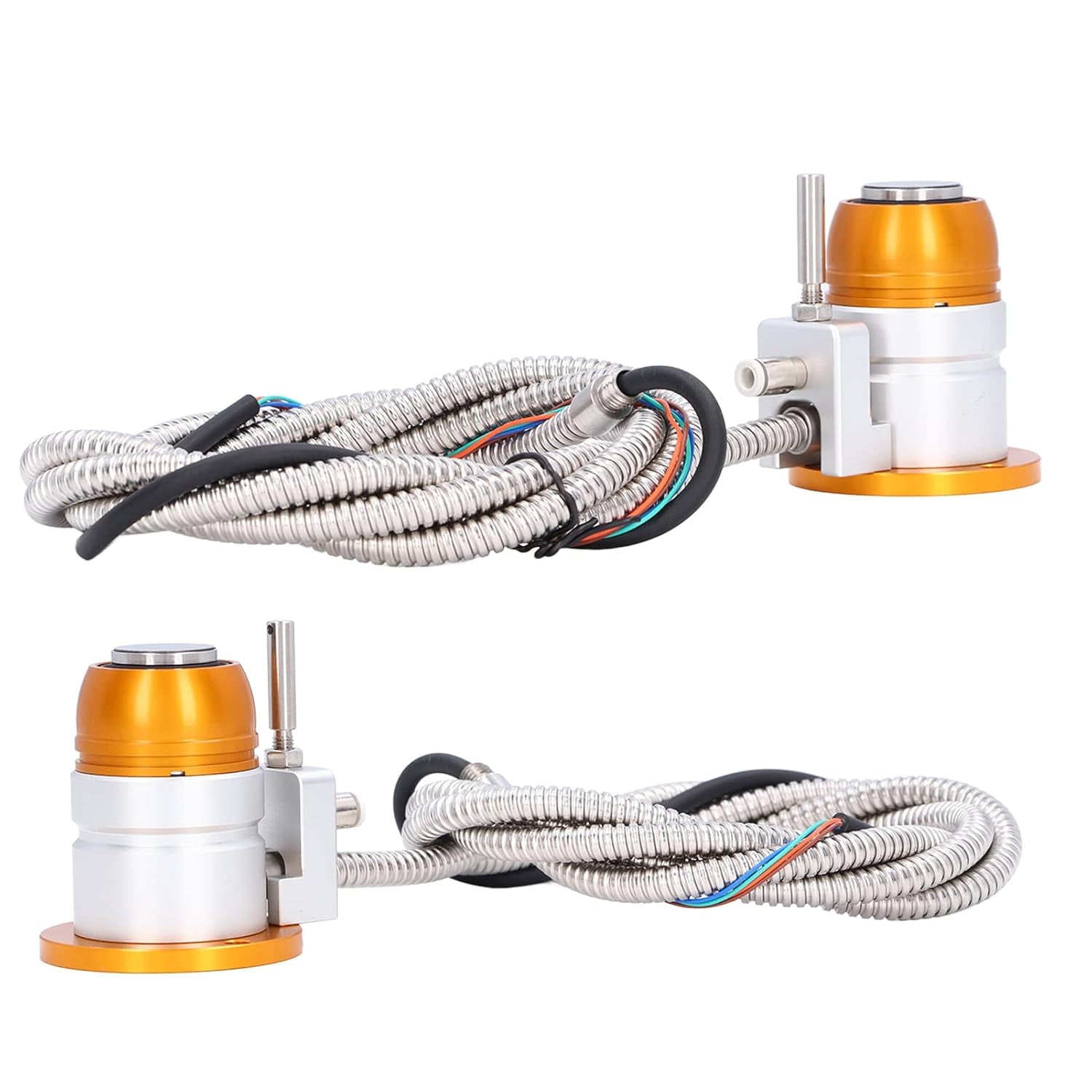

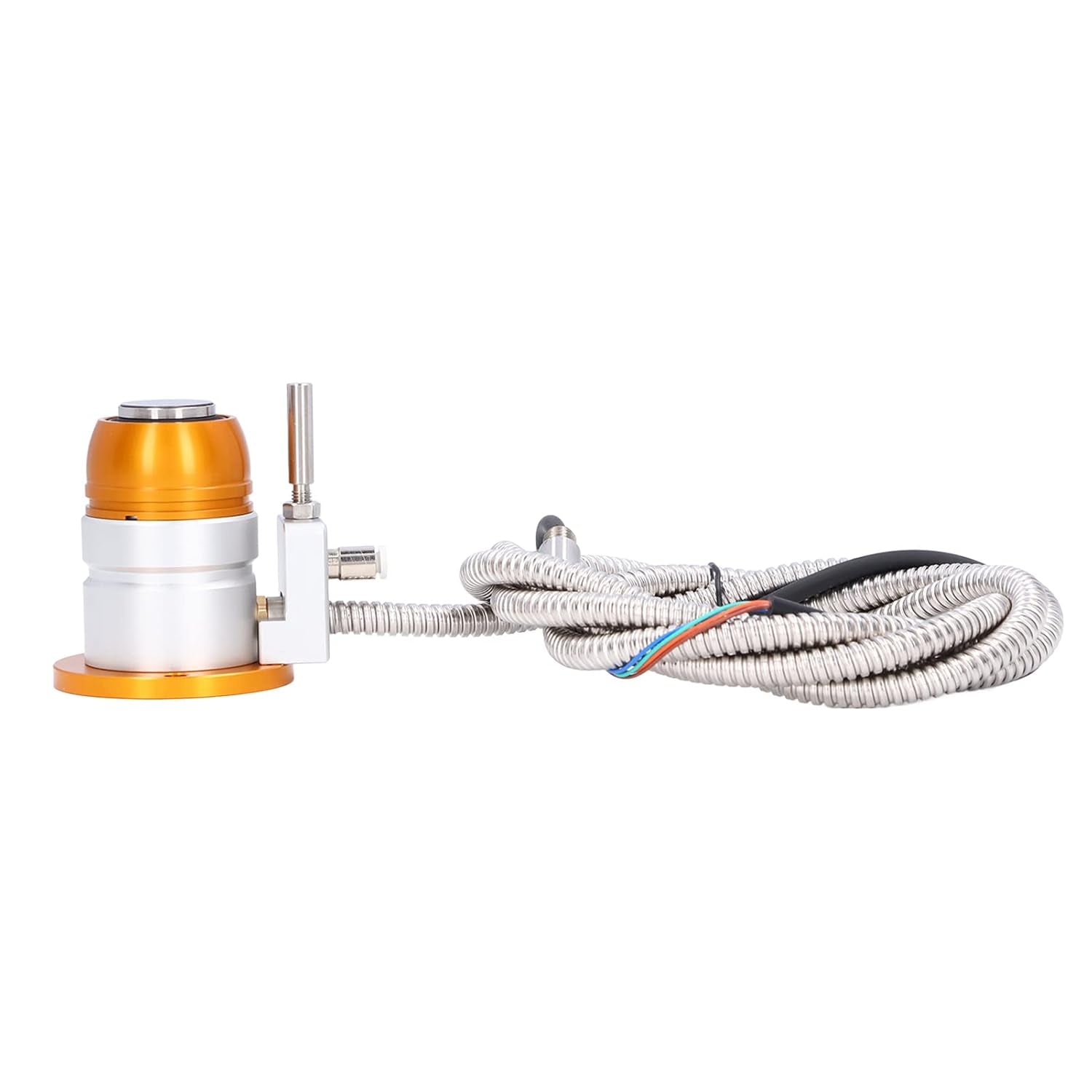

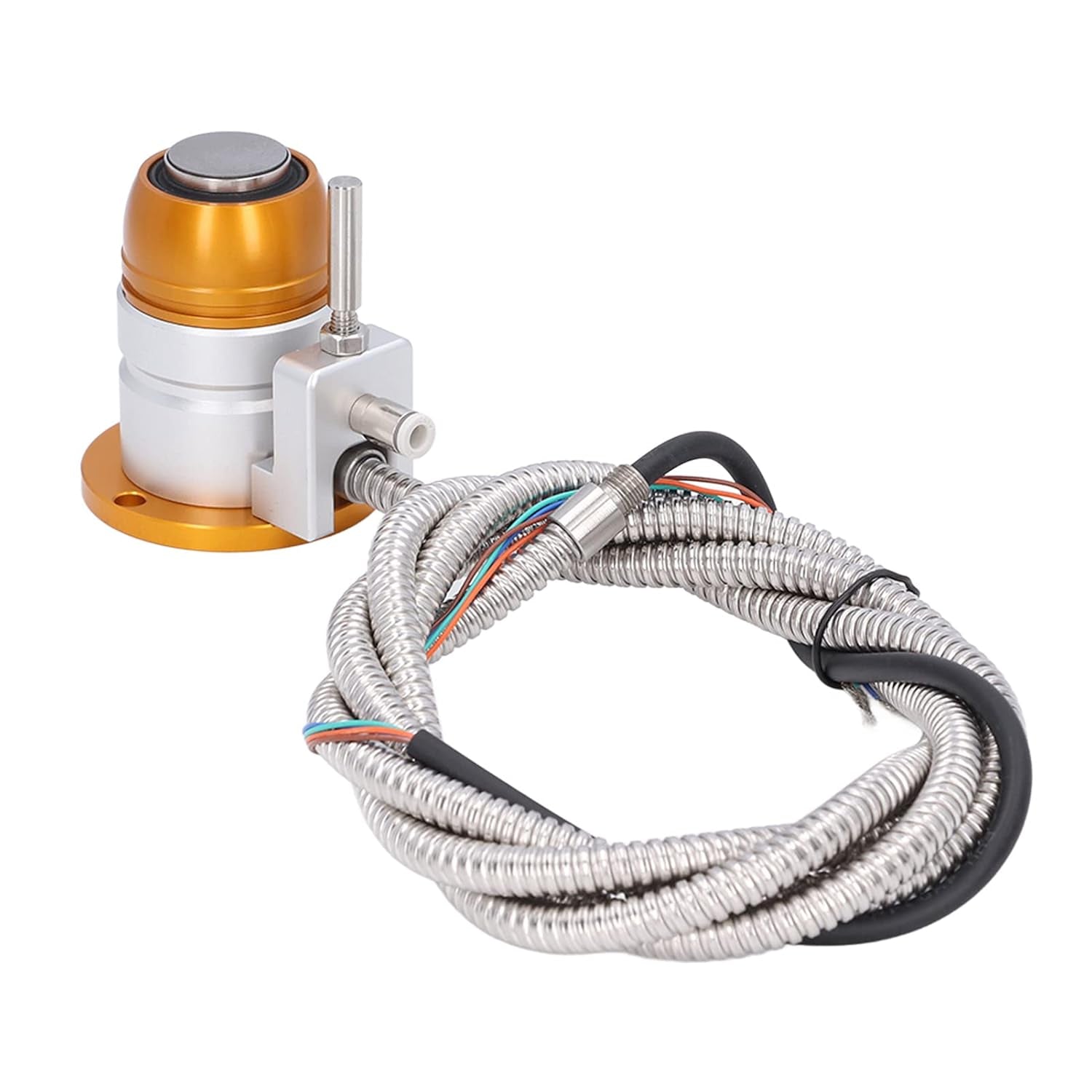

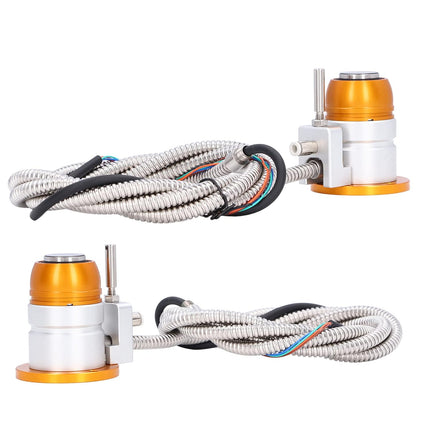

Item Type: Touch Tool Setter
Product Material: Aluminum Alloy
Tool Head Material: Carbide Alloy
Product Model: MY20-20-2
Voltage: DC 24V
Current: 20MA (Maximum)
Output Mode: NC (Normally Closed)
Stroke: Approx. 5mm / 0.2in
Repeat Positioning Accuracy: 0.001mm
Life: 3 million times
Force: 1.5N
Tool Head Diameter: Approx. 20mm / 0.8in
PackageList:
1 Setter
Notice:

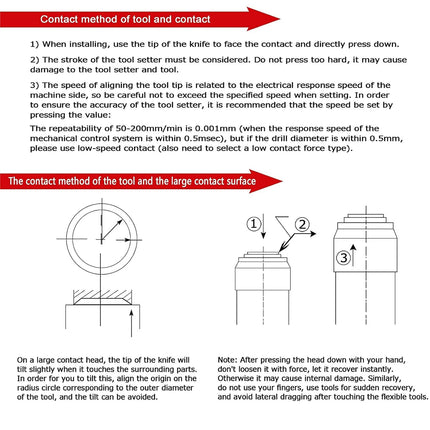

1. Please control the tool setting speed at 50‑200mm/min.
2. Ambient temperature range is 0‑80℃.
3. Please control the voltage at DC24V and the current below 20MA.
